What is VTL Processing

VTL Processing is a .NET Core library for translating VTL expressions into various target languages. The generated code can be then executed in a data processing environment to perform data validation or transformation. The library is DI-friendly and comes with built in support for .NET IOC container.

Basic architecture

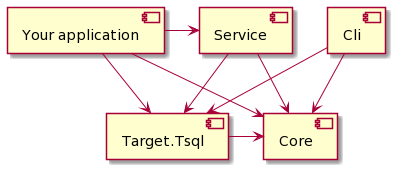

The VTL processing consists of several pieces:

  • Core library

  • translation target libraries

  • CLI application

  • REST translation service

diagram

The translation process has been divided into three stages, according to the classical compiler architecture:

Front End

Performs the analysis of the input VTL code and generates an intermediate representation for further processing.

Middle End

Type inference and code optimizations takes place in this phase.

Back End

Generates output code of the translation target language.

diagram

Front-end and Middle-end parts of the translator are packaged in the StatisticsPoland.VtlProcessing.Core library. Code generation logic (back-end) has been placed in separate targeting packages, one for each target language. VTL processing comes with the following targets:

StatisticsPoland.VtlProcessing.Target.Tsql

Produces a Transact SQL code executable under Sql Server databases.

StatisticsPoland.VtlProcessing.Target.PlantUml

Generates a PlantUML diagram of the provided intermediate representation. Helpful for debugging purposes.

VTL Processing also comes with a simple command line application to perform translation without the need to build your own app.

Example translation

Source VTL code
DS_r := DS_1 + DS_2
Translated T-SQL code
IF OBJECT_ID (N'tempdb..#DS_r', N'U') IS NOT NULL
DROP TABLE #DS_r

SELECT * INTO #DS_r FROM (
SELECT
ds1.Id_1,
ds1.Id_2,
ds1.Me_1 + ds2.Me_1 AS Me_1,
ds1.Me_2 + ds2.Me_2 AS Me_2
FROM DS_1 AS ds1
INNER JOIN DS_2 AS ds2
ON
ds1.Id_1 = ds2.Id_1 AND
ds1.Id_2 = ds2.Id_2
) AS t

Additional metadata requirements

In order to perform the translation, you need to provide the model of the data, your VTL expressions work with. The above example translation wouldn’t be possible without the knowledge of DS_r structure.

diagram
